Valve Outlet Caps
We sell a wide variety of outlet caps for the compressed gas industry. Roll mouse over picture for more detail.

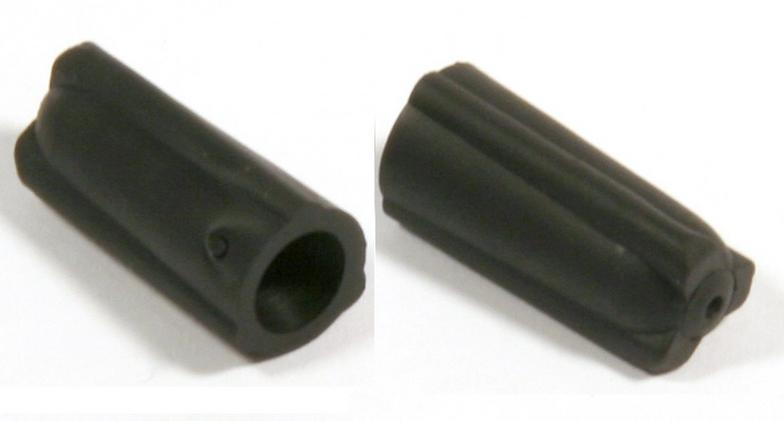

Barb Nipple Cap - Ribbed Sides
This cap is made to protect the hose barb outlet on Valve Integrated Pressure Regulator (VIPR) units. This particular cap has ribbed sides to prevent healthcare providers from installing a cannula on the VIPR unit without removing the barb cover.
Part Number:
033-204 Black
033-416 - Red
033-446 - Green
Barb Nipple Cap - Smooth Sides
This cap is made to protect the hose barb outlet on Valve Integrated Pressure Regulator (VIPR) units.
Part Number:
033-203 Black

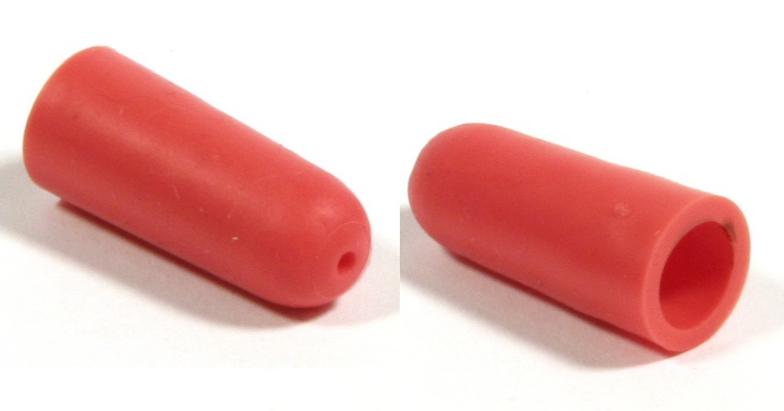

Barb Nipple Cap - Smooth Sides
This cap is made to protect the hose barb outlet on Valve Integrated Pressure Regulator (VIPR) units.
Part Number:
033-345 Red

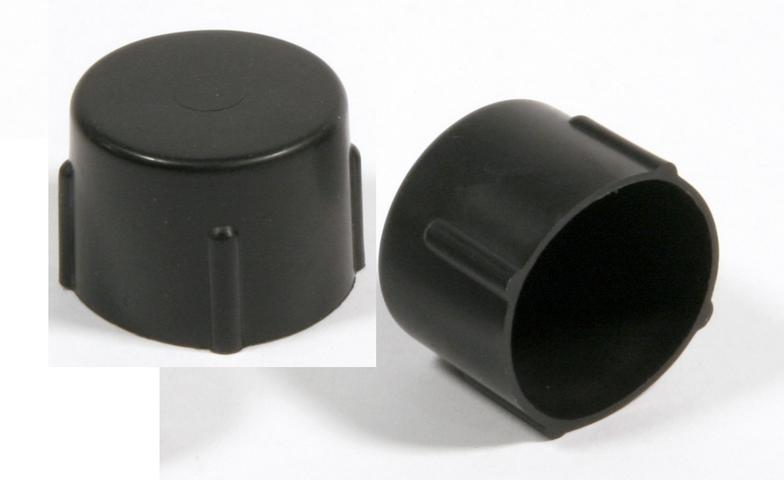

CGA 540 Push-on for VIPR Units
Made to fit over the CGA 540 fill connection on VIPR units. It is made of a special material to make it easy to remove.
Part Number:
033-423 Black
Cap Plug Standard Inert Cap
Multi-use safety cap with pressure relief blow out tab to prevent the cap from being blown off the valve if the valve is opened prior to removal of the dust cap.
Fits CGA 320, 326, 346, 350, and 580 valves.
Part Number:
033-014 Red
033-123 Blue
033-125 Brown
033-144 Yellow
033-147 Safety Gray
CGA 540 Push-on with Tear Tab for Easy Removal
These caps are made to protect CGA 540 valves. There is a convenient tear tab to aid the user in quick removal.
Part Number:
033-174 Brown
033-175 Green
Cap Plug 280/500
Multi-use dust cover for CGA 280 and CGA 500 valves. Has a tear tab on the side to aid in the removal of the dust cover.
Part Number:
033-173 Brown

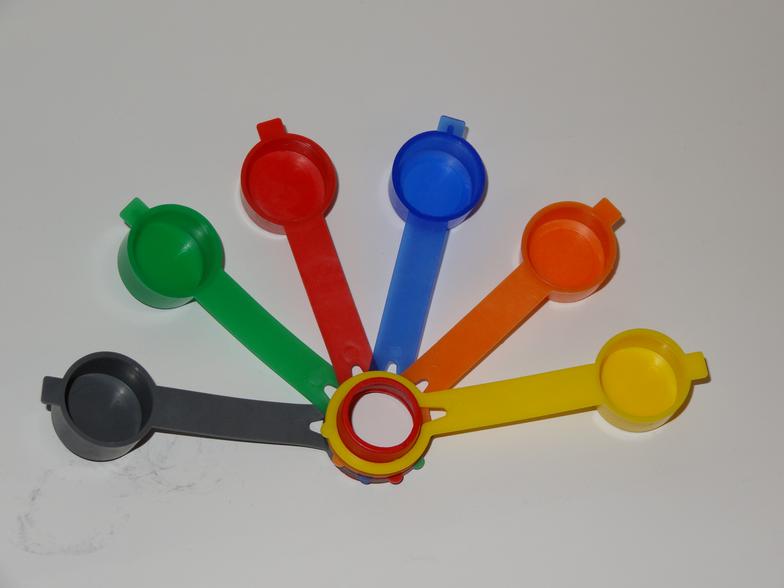

CO2 Cap with Strap
These caps are made for CGA 320 CO2 valves. They have a strap to keep the cap attached to the cylinder so they can be put back on the valve and returned with the cylinder when empty.
Part Number:
033-036 Red
033-037 Orange
033-098 Blue
033-099 Yellow
033-100 Green
CGA 540 Push-on Cap
This economy cap is made for CGA 540 oxygen valves
Part Number:
033-209 Clear
CGA 540 Push-on Cap
This economy cap is made for CGA 540 oxygen valves
Part Number:
033-208 Green

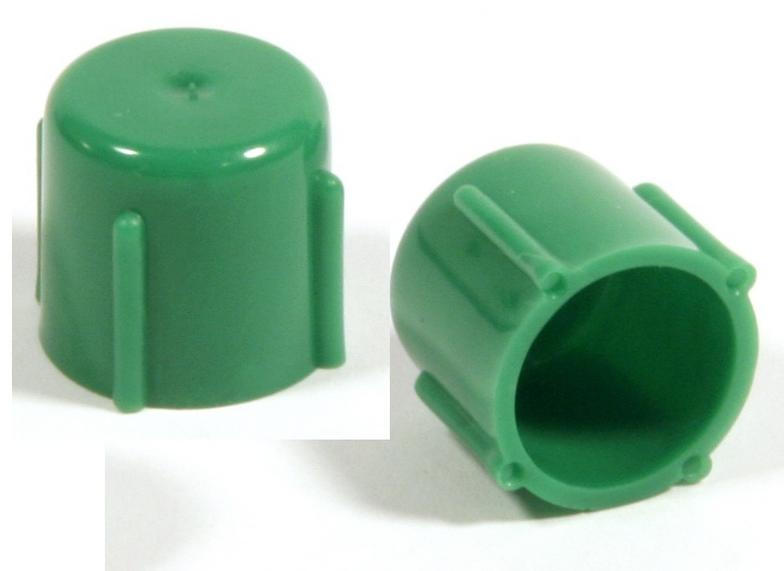

EZ-OX Push on Cap
This cap is designed to slide over the DISS fitting on VIPR units.
Part Number:
033-205 Green

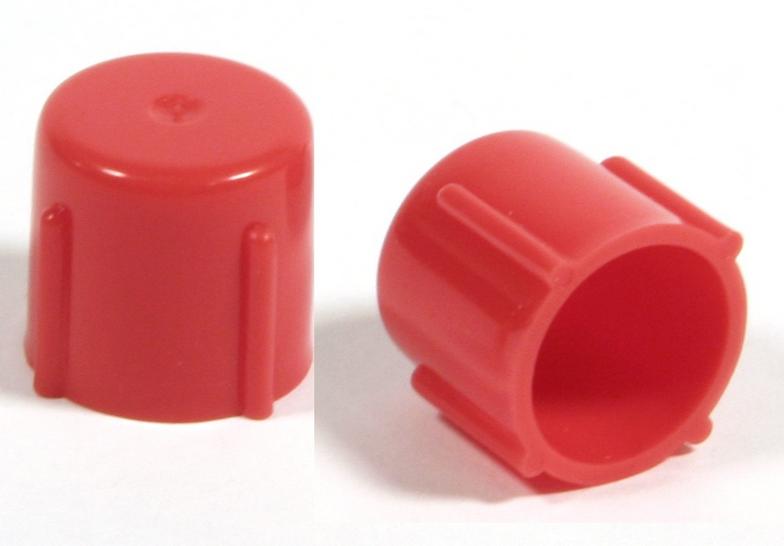

EZ-OX Push on Cap
This cap is designed to slide over the DISS fitting on VIPR units.
Part Number:
033-206 Red

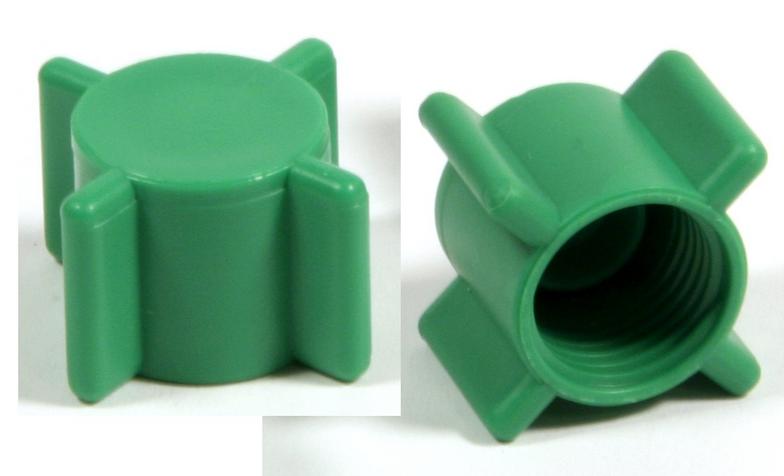

EZ-OX Threaded Cap
This cap is designed for the DISS fitting on VIPR units. The cap is threaded so that it screws on for extra security against being inadvertently removed.
Part Number:
033-201 Green

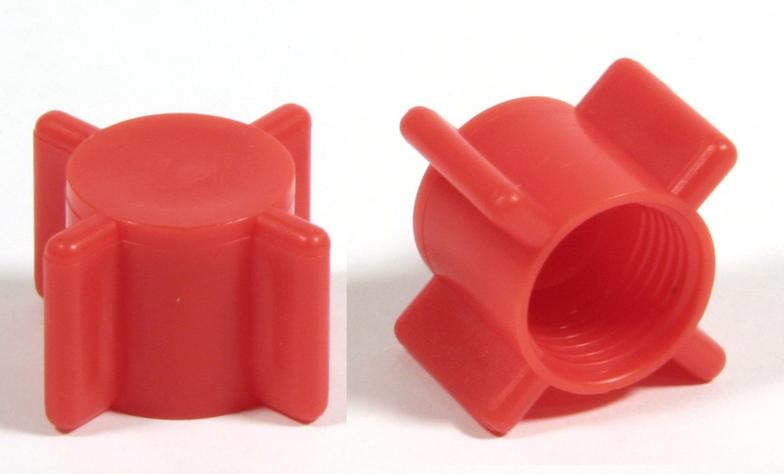

EZ-OX Threaded Cap
This cap is designed for the DISS fitting on VIPR units. The cap is threaded so that it screws on for extra security against being inadvertently removed.
Part Number:
033-202 Red
